Next-Generation Unified Communications Platform

The OpenVox Unified Communications Platform (UCP) provides SMEs with an integrated data, voice, and video communication solution. Users can flexibly select feature-rich control modules and service modules based on their needs, connected via high-speed Ethernet backplane ports.

Ⅰ.Control and Service Boards

UCP covers a full range of telecom interfaces and IPPBX functions, supporting interfaces such as FXS/FXO,GSM,WCDMA,LTE,E1/T1,etc. Based on universal X86 architecture/domestic Xinchuang architecture, it supports flexible deployment of IPPBX and other business systems. Multiple independent CPU control modules can be installed in the chassis, supporting dual-controller redundancy and multi-node clustering solutions. UCP delivers a true integrated converged communications solution.

​

Ⅱ.Case Studies

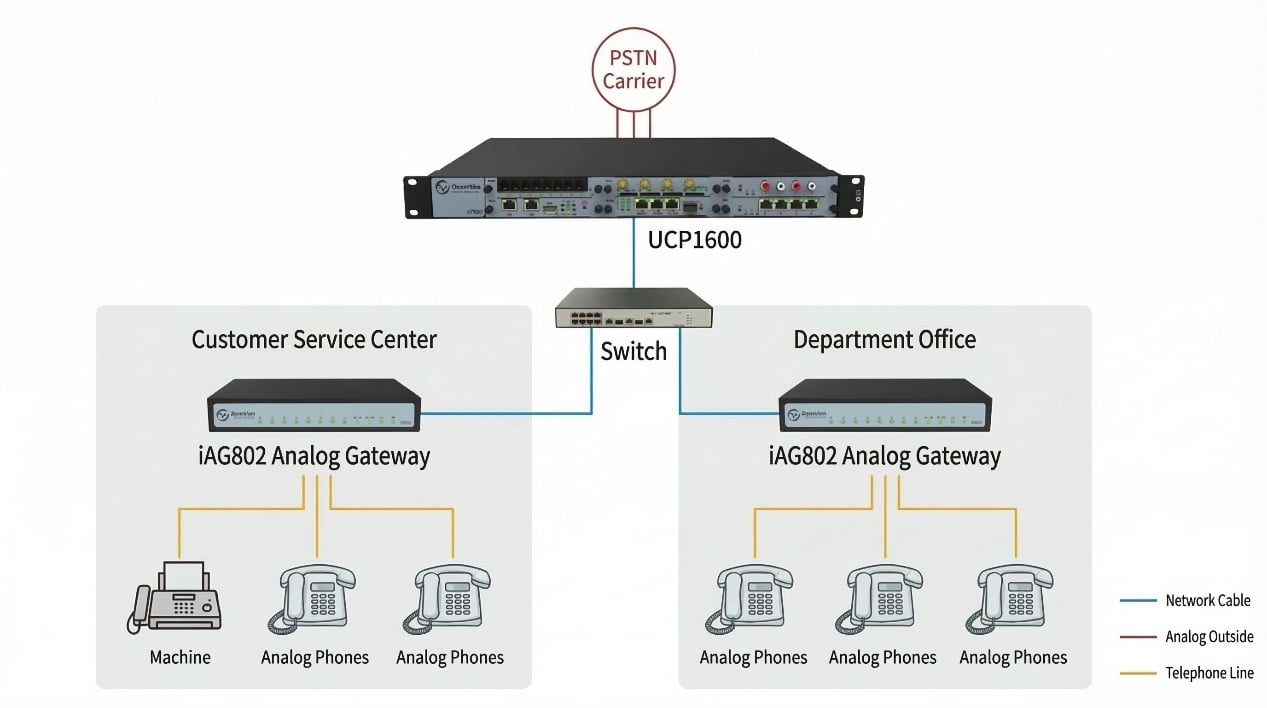

1.Small Educational Institution: Low-Cost Professional PBX System

Customer Needs: Daily office requires a stable telephone voice system supporting internal calls, transfers, intercepts, etc.; different departments need grouping by internal/external lines, with flexible outbound via different external lines.

Solution Highlights:

• Deploy one UCP1600 with CCU control module and AIU-8O service board to easily connect traditional PSTN external lines; WTU module provides wireless backup channel for stable calls without drops.
• Deploy iAG802 gateways in customer service center and department offices to seamlessly connect existing analog phones, maximizing utilization of original equipment investment.

Value Benefits:

• Existing phones “instantly upgraded” to IP PBX system without major rewiring.
• Unified internal/external line management significantly improves departmental collaboration efficiency.

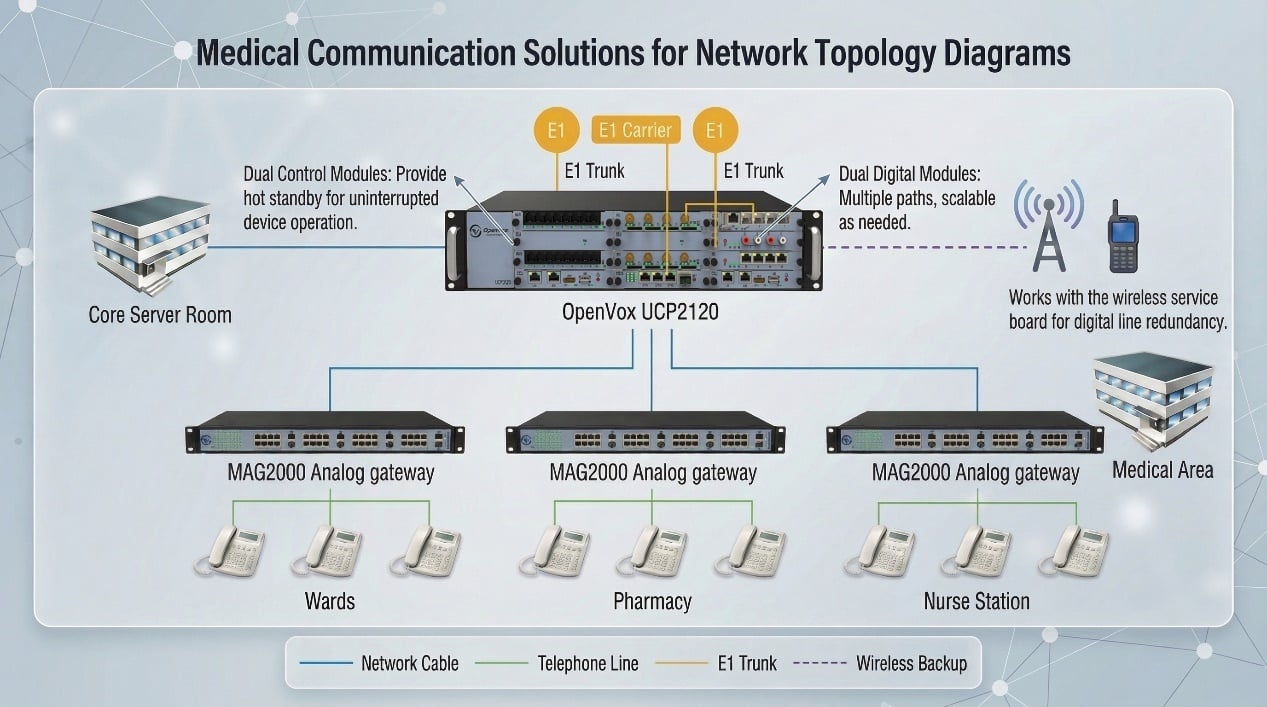

2.Medical Public Health Center: Unified Platform for Nine Medical Zones

Customer Needs: Center has 9 medical zones; wards, nurse stations, pharmacies need unified telephone network; system must have telecom-grade stability, supporting at least 200 concurrent calls for internal and external communication.

Solution Highlights:

• Core deployment of UCP2120 with dual-machine hot standby architecture; seamless failover even if one machine fails, ensuring critical medical communication 7×24 online.
• External lines with two DTU module boards connecting 4 30B+D digital trunks for high-capacity internal/external calls.
• Unified MAG2000 analog gateways in each zone, registered to UCP2120 control via network; phone lines to nurse stations, wards, pharmacies—analog phones become UCP extensions instantly.

Value Benefits:

• Hospital-wide phone system unified planning and management, reducing maintenance difficulty.
• Uninterrupted calls in critical moments, providing solid communication foundation for medical decisions and emergency command.

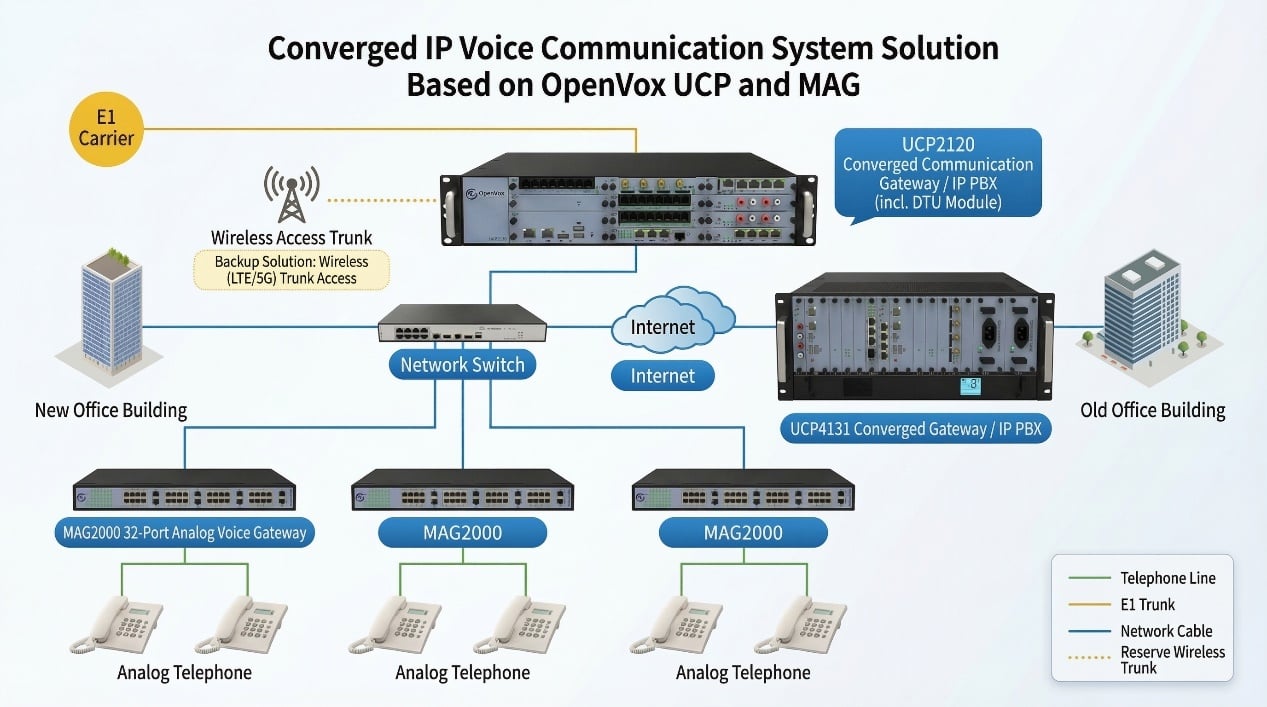

3.Bank Credit Card Center: Dual-Building Office, One Network Interconnection

Customer Needs: With business expansion, some departments moved to new office building. Customer wants interconnection between old and new buildings without disrupting existing numbers/habits, maintaining consistent internal communication.

Solution Highlights:

• New building deploys one UCP2120 connected to enterprise network with public network mapping. DTU module connects original analog external lines for multi-channel concurrent outbound/inbound calls. Wireless module as E1 redundancy for dual assurance.
• Deploy MAG2000 analog voice gateways, registered to IPPBX via network, linking desk analog phones for seamless employee switch.
• Old building UCP4131 interconnects with new UCP2120 via SIP protocol for cross-building unified numbering and internal dialing.

Value Benefits:

• Old/new buildings achieve “one network, one system” experience; no need to rememorize numbers.
• Networked setup greatly reduces relocation/expansion costs, reserving space for future growth.

4.Call Center Scenario: 40 Seats 7×24 Non-Stop Service

Customer Needs: Integrate existing 400 phone into new call center platform without changing service numbers; support 40 seats unified management, desk phone + headset setup; stable 7×24 operation.

Solution Highlights:

• Deploy one UCP2120 with two control boards for dual-machine hot standby, ensuring core platform always online.
• DTU module for multi-E1 voice trunks, wireless module as link backup for multi-level high availability.
• Create 40 seat extensions in UCP control, flexibly configured by business level, department, skill group for permissions—adapting various strategies.

Value Benefits:

• 400 numbers smoothly migrated, no impact on customer experience.
• Unified seat management and reports make operations data clear, supporting fine-tuned operations.

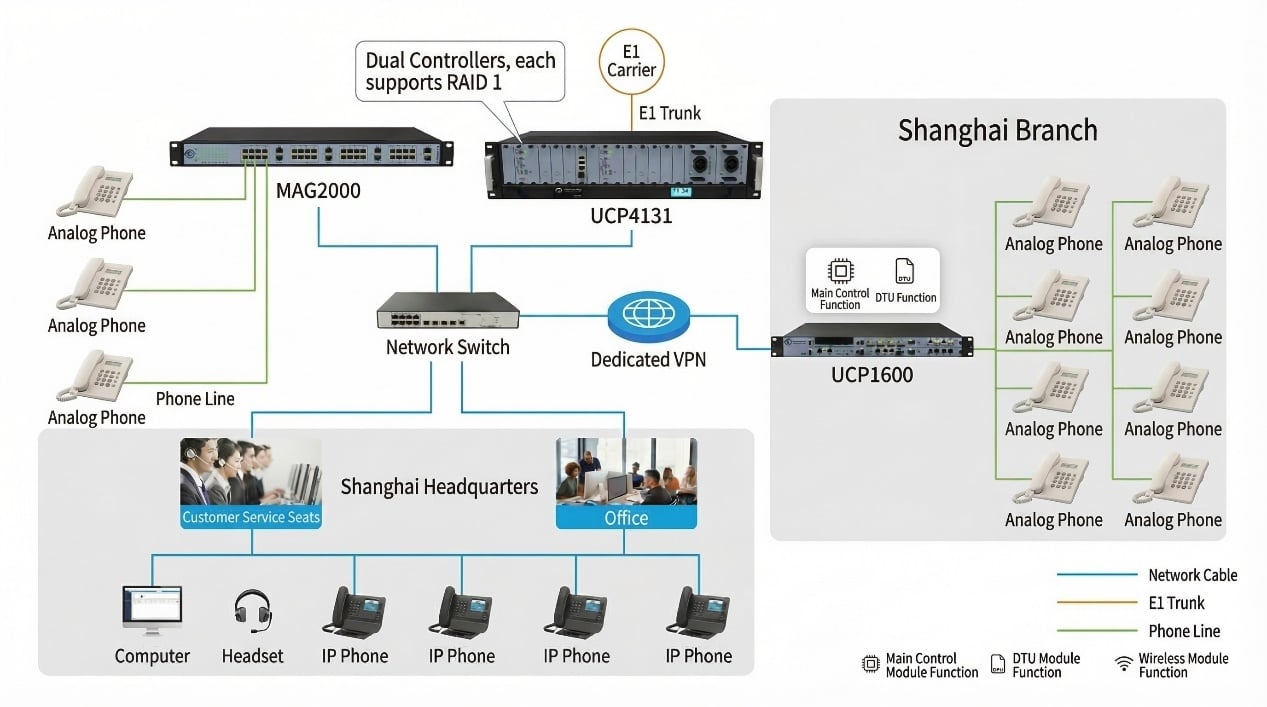

5.Large Medical Enterprise: High-Quality HQ-Branch Interconnection

Customer Needs: Build high-quality, scalable voice interconnection between HQ and branches; unified platform management with local call handling.

HQ Solution Highlights:

• Deploy one UCP4131 connected to enterprise intranet, deeply integrated with existing phone system for unified management/scheduling.
• DTU board pairs via E1 etc. for reliable voice private network with branches.
• MAG2000 gateways scaled by seat count for future growth.
• Dual servers + RAID1 with zero single point of failure, master-slave control for hot switching + real-time disk mirroring, single disk failure does not cause system shutdown.

Branch Solution Highlights:

• Branches deploy UCP1600 with DTU board, E1 interconnection to HQ for dedicated voice-quality calls.

Value Benefits:

• HQ-branch phones truly integrated; cross-region calls like internal.
• Centralized voice resources/strategies reduce overall maintenance costs.
